The HRJS series is 0-10V/Dali/Push 3-in-1 dimming constant voltage LED switching power supply driver, specially designed for indoor medium and large-scale intelligent LED lighting projects. It integrates three control modes: analog 0-10V/1-10V dimming, digital DALI DT6 dimming and Push dimming, providing a one-stop solution for dimming control needs in different lighting scenarios.

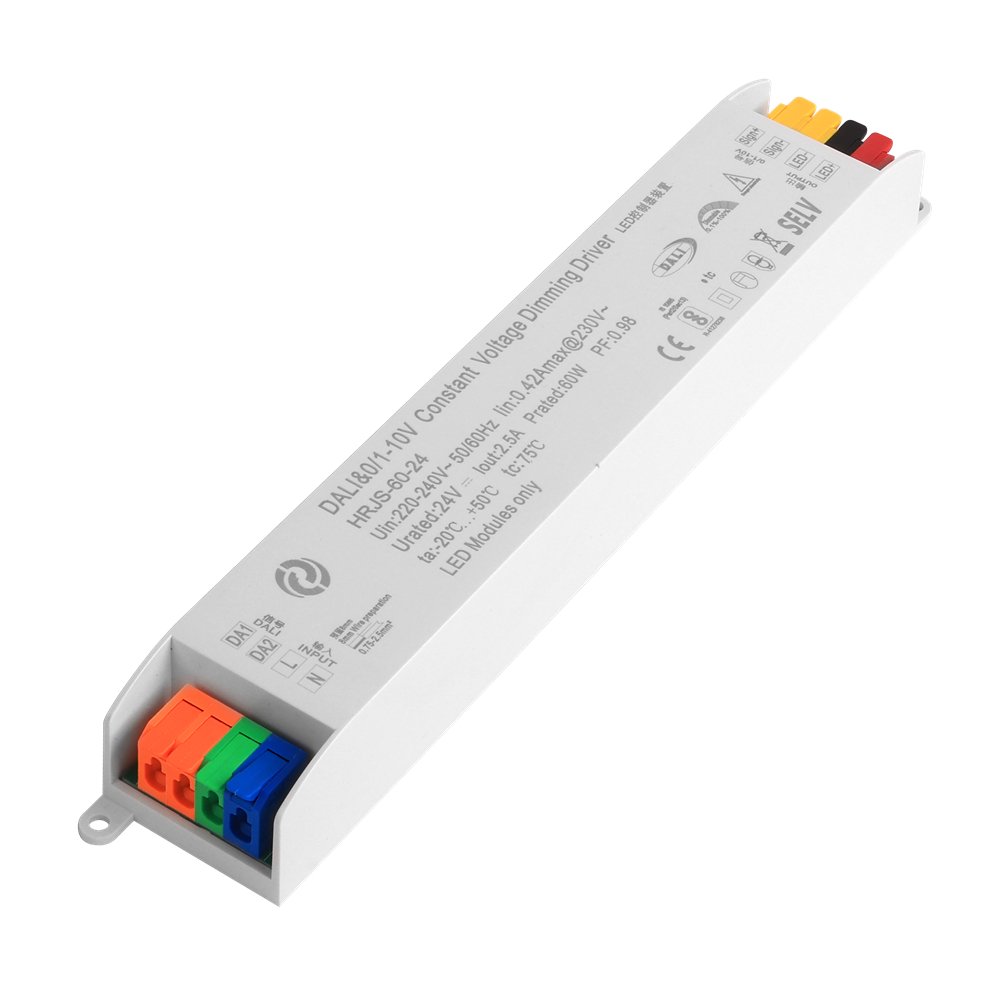

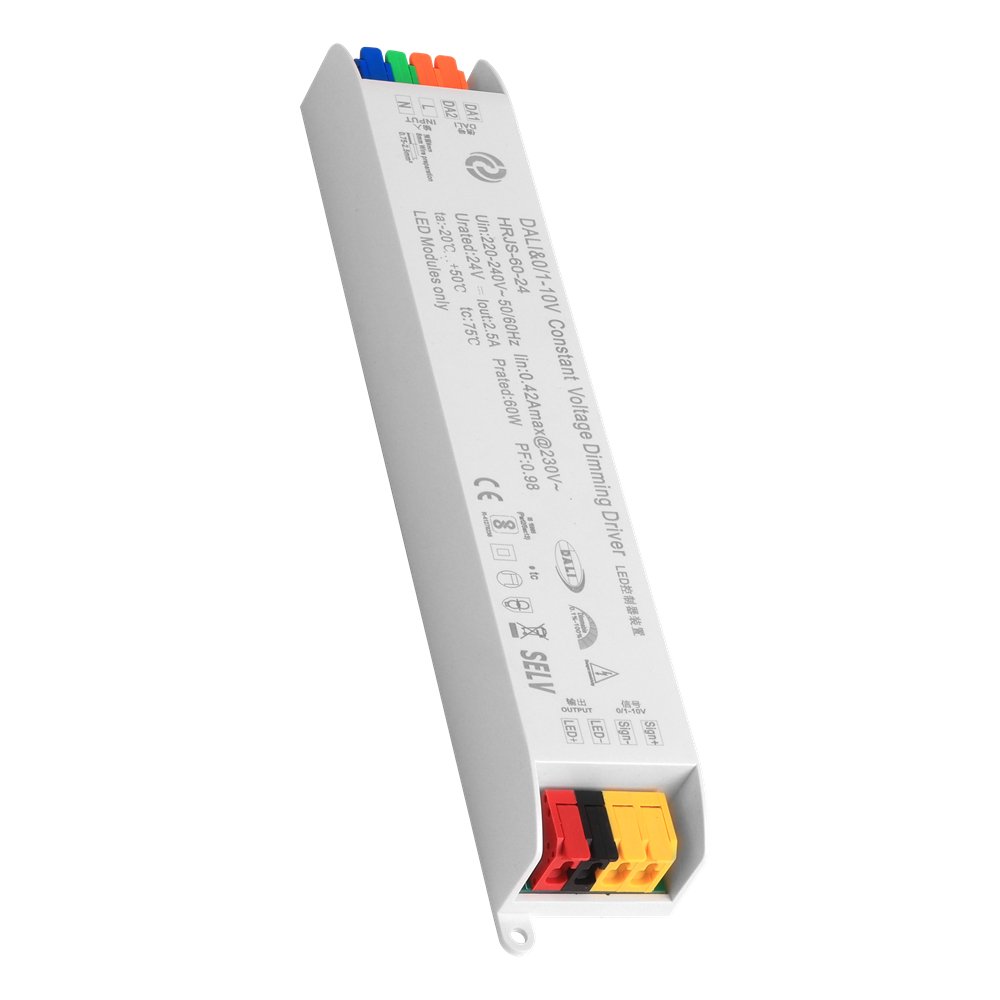

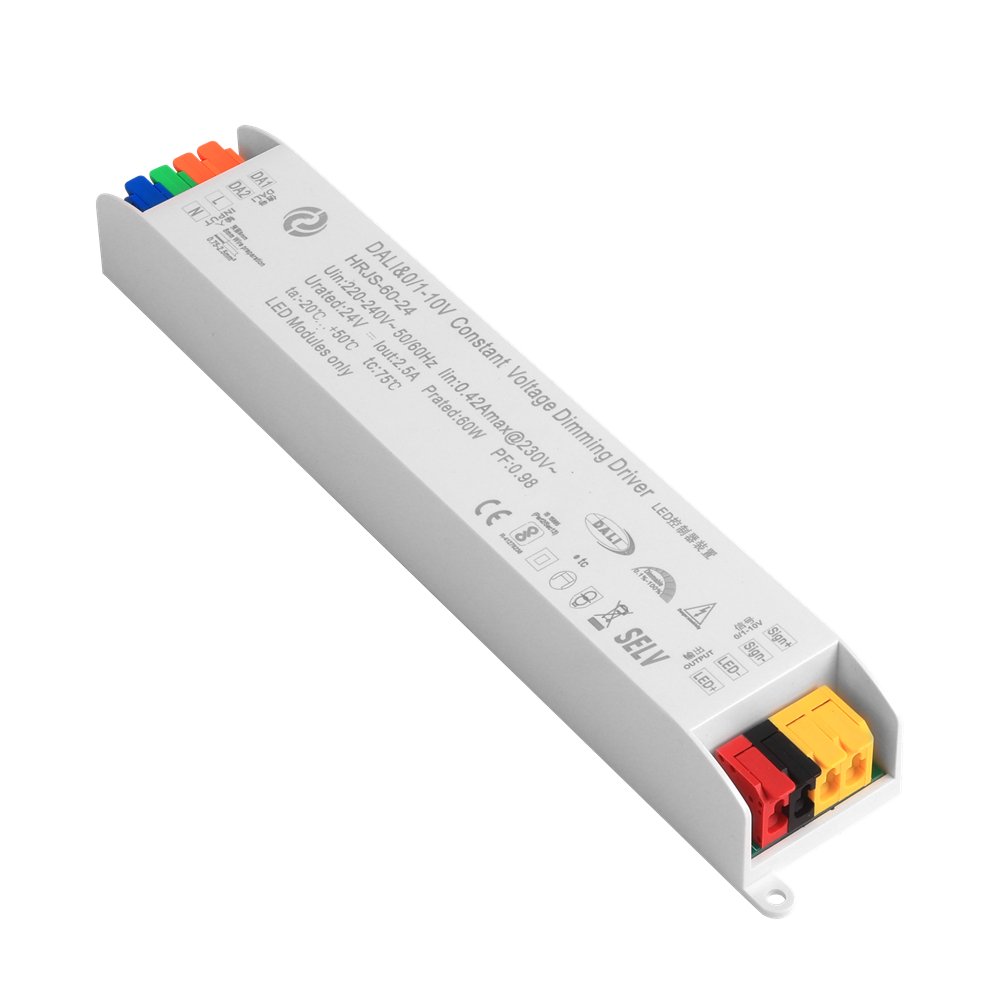

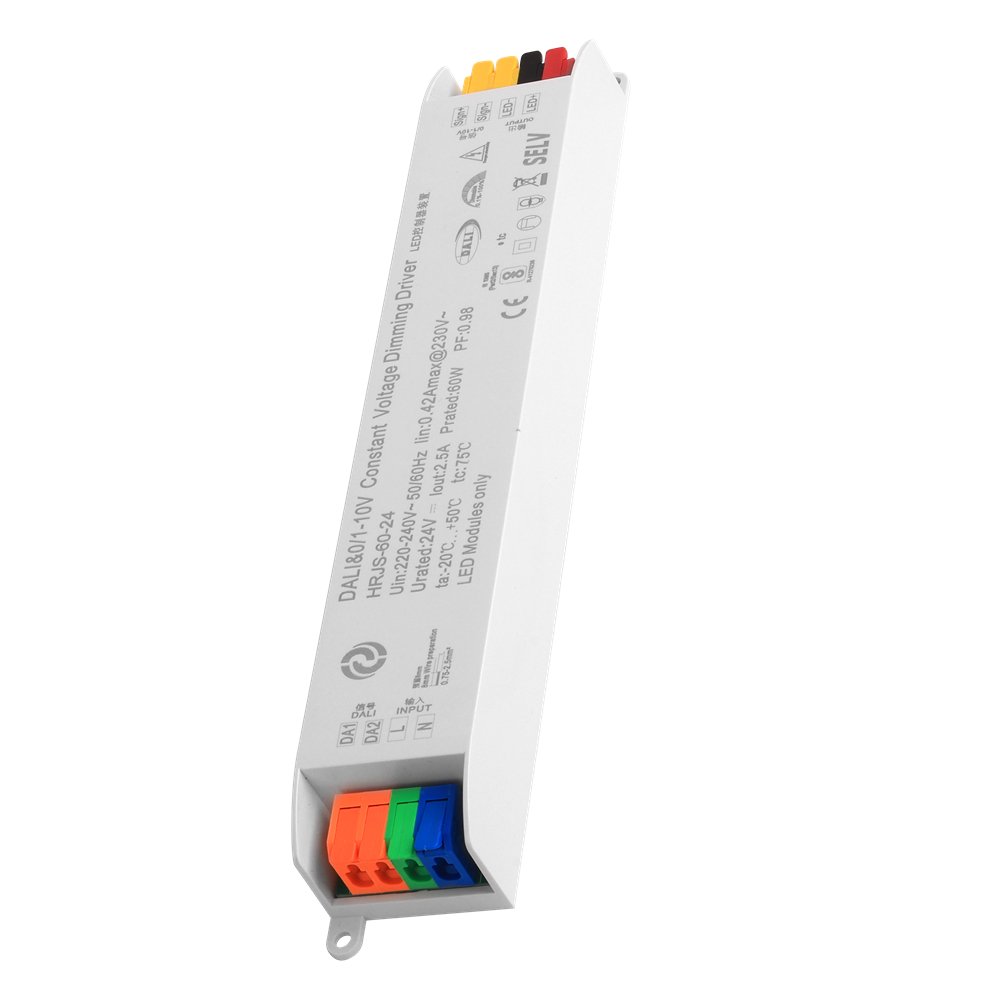

100-277VAC 0-10V/Dali/Push 3-in-1 Dimming LED Switching Power Supply Driver 60w
The HRJS series is 0-10V/Dali/Push 3-in-1 dimming constant voltage LED switching power supply driver, specially designed for indoor medium and large-scale intelligent LED lighting projects. It integrates three control modes: analog 0-10V/1-10V dimming, digital DALI DT6 dimming and Push dimming, providing a one-stop solution for dimming control needs in different lighting scenarios.
• Input Voltage: 200-240vac or 100-277vac
• Output Voltage: 24VDC
• Output Power: 36W
• Dimming Type: 0-10V/Dali/Push 3-in-1 Dimming
• Warranty: 3 years
• IP Rate: IP55
• Certification: CE ROHS listed
| Function Version | Model | Power (W) | Output Voltage(DC V) | Output Current (A) | Product Size (L×W×H,mm） |
Input Voltage(vac) | Dimming Modes |
|---|---|---|---|---|---|---|---|
| 24V 3-in-1 Dimming | HRJS-60-24 | 60 | 24 | 2.5 | 243×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
| 24V 3-in-1 Dimming | HRJS-100-24 | 100 | 24 | 4.2 | 272×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
| 24V 3-in-1 Dimming | HRJS-150-24 | 150 | 24 | 6.3 | 272×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
| 24V 3-in-1 Dimming | HRJS-200-24 | 200 | 24 | 8.3 | 336×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
| 24V 3-in-1 Dimming | HRJS-250-24 | 250 | 24 | 10.4 | 336×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
| 24V 3-in-1 Dimming | HRJS-300-24 | 300 | 24 | 12.5 | 336×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
| 24V 3-in-1 Dimming | HRJS-350-24 | 350 | 24 | 14.6 | 336×40×30 | 100-277 | DT6 +Push+0-10V/1-10V |
