LEDMELIGHT 24vdc 96w junction box LED drivers Ultra-thin High PF Non-Dimmable led power supply are specifically designed for exterior use, it is 100-277vac for widely using for led strip, led module, etc.
junction box LED driver 100-277vac 24vdc 96w led power supply
LEDMELIGHT 24vdc 96w junction box LED drivers Ultra-thin High PF Non-Dimmable led power supply are specifically designed for exterior use, it is 100-277vac for widely using for led strip, led module, etc.
• Input Voltage: 100-277vac
• Output Voltage: 24VDC
• Output Power: 96W
• Dimming Type: Non dimming
• Warranty: 5 years warranty
• IP Rate: IP65
• Certification: CE ROHS ETL/cETL FCC ROHS listed
100-277vac 24vdc 96w Ultra-thin High PF Non-Dimmable Waterproof led power supply junction box LED driver
- Features
■ Universal AC input/full range(100-277V)
■ Time control and Photosensitive control, saving 50% energy
■ Efficiency up to 87%,
■ Protections:short circuit/over load/over voltage/over temperature
■ IP65 design for indoor or outdoor installation
■ It can be used in dry,wet and rainy environment
■ Up to 50000-hours life time
■ Compliance to worldwide safety regulation for led lightings.
2. Specification
| Model | Input voltage(AC) | Power | Out voltage(DC) | Output current | Certification | Size(mm) | ||
|---|---|---|---|---|---|---|---|---|
| No Junction box | With one junction box | With two junction boxes | ||||||
| PSD-HP60-A12 | 100-277V | 60W | 12V | 5A | ETL,FCC,CE | 148*53*36 | 210*65*36 | 274*65*36 |
| PSD-HP60-A24 | 100-277V | 60W | 24V | 2.5A | ETL,FCC,CE | 148*53*36 | 210*65*36 | 274*65*36 |
| PSD-HP100-A12 | 100-277V | 100W | 12V | 8.3A | ETL,FCC,CE | 148*53*36 | 210*65*36 | 274*65*36 |
| PSD-HP100-A24 | 100-277V | 100W | 24V | 4.15A | ETL,FCC,CE | 148*53*36 | 210*65*36 | 274*65*36 |
| PSD-HP150-A12 | 100-277V | 150W | 12V | 12.5A | ETL,FCC,CE | 148*65*36 | 210*65*36 | 274*65*36 |
| PSD-HP150-A24 | 100-277V | 150W | 24V | 6.25A | ETL,FCC,CE | 148*65*36 | 210*65*36 | 274*65*36 |
| PSD-HP200-A12 | 100-277V | 200W | 12V | 16.6A | ETL,FCC,CE | 238*65*36 | 300*65*36 | 364*65*36 |

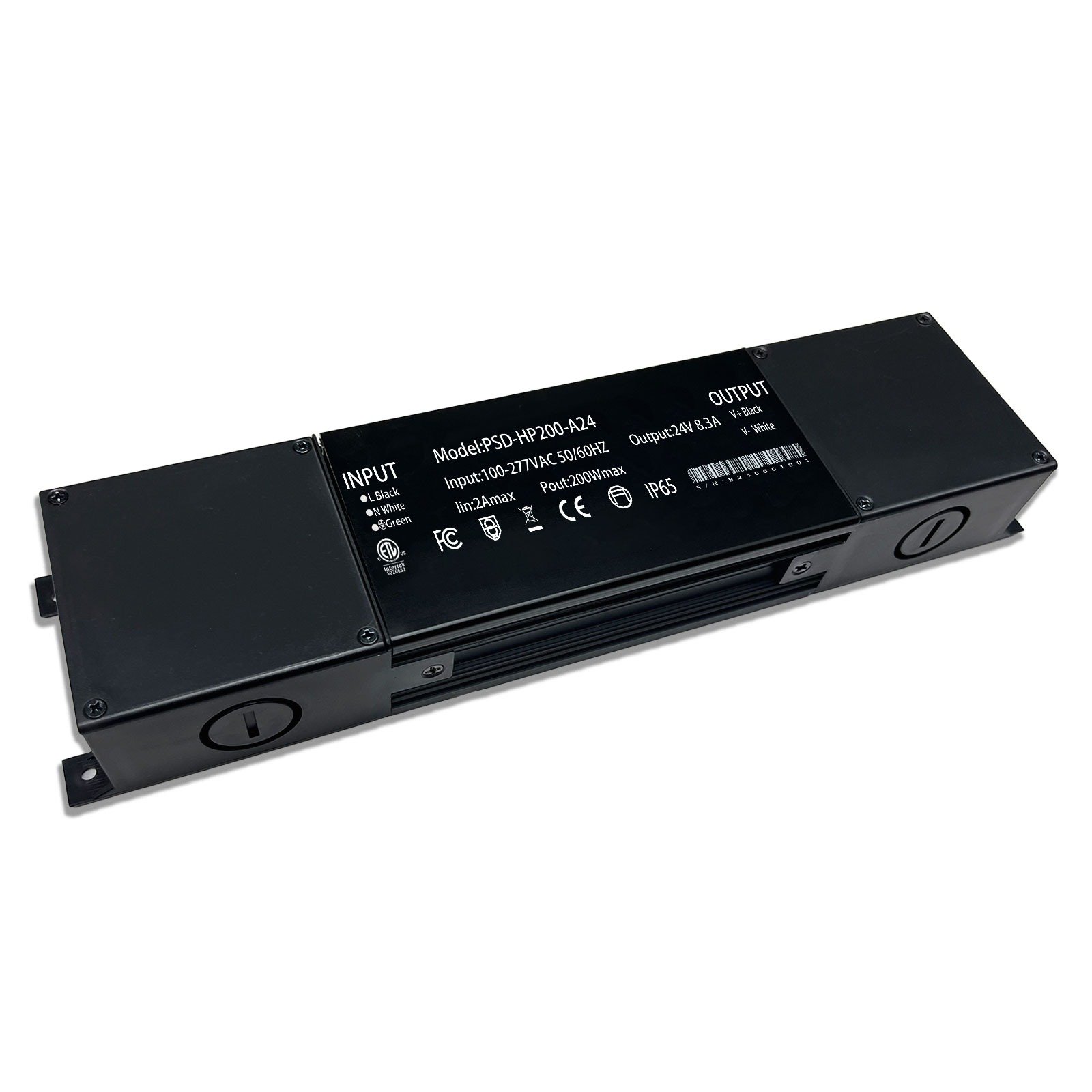

| PSD-HP200-A24 | 100-277V | 200W | 24V | 8.3A | ETL,FCC,CE | 238*65*36 | 300*65*36 | 364*65*36 |
| PSD-HP300-A12 | 100-277V | 300W | 12V | 25A | ETL,FCC,CE | 238*65*36 | 300*65*36 | 364*65*36 |

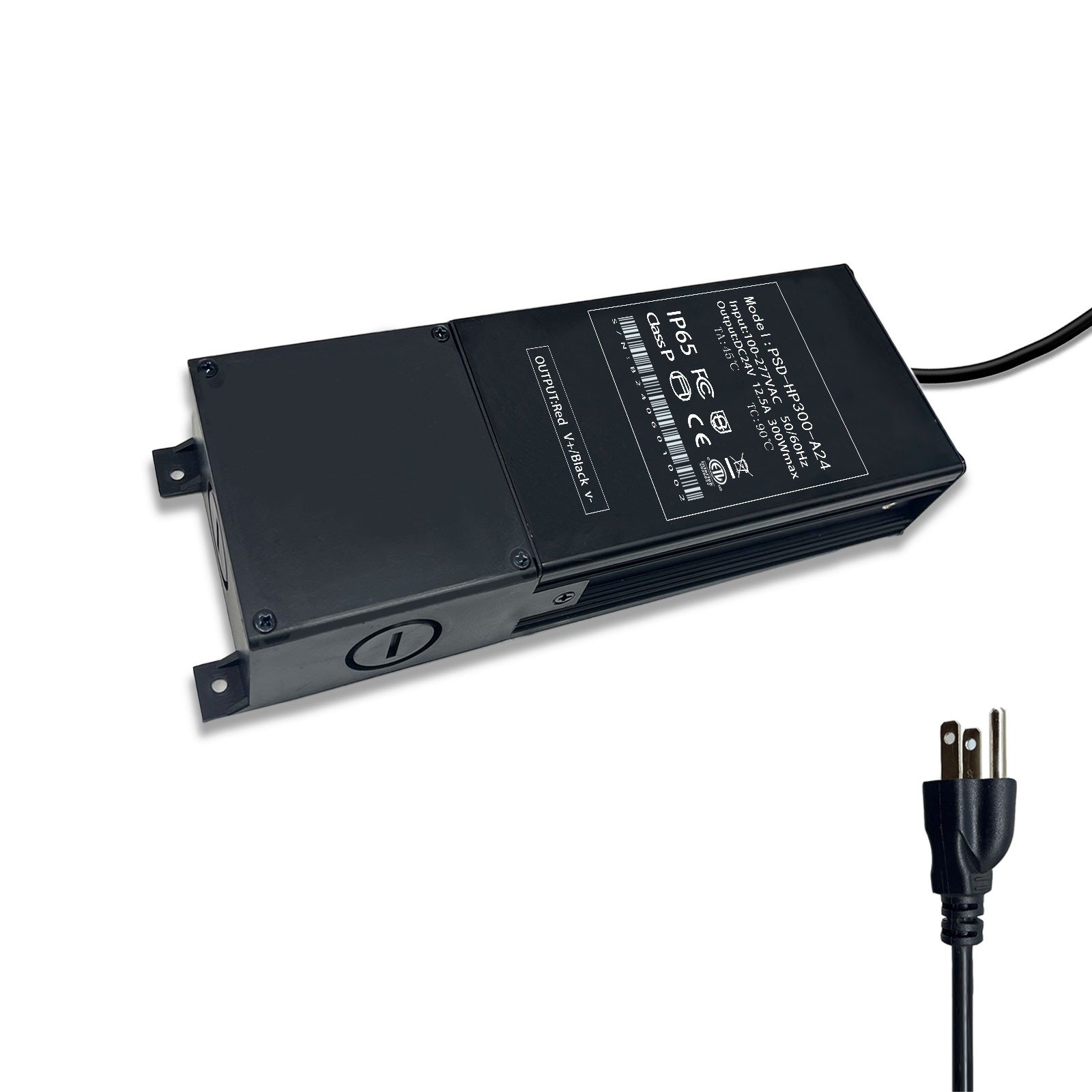

| PSD-HP300-A24 | 100-277V | 300W | 24V | 12.5A | ETL,FCC,CE | 238*65*36 | 300*65*36 | 364*65*36 |
| PSD-HP200-A12 | 220-240V | 200W | 12V | 16.6A | CE | 218*65*36 | 280*65*36 | 344*65*36 |
| PSD-HP200-A24 | 220-240V | 200W | 24V | 8.3A | CE | 218*65*36 | 280*65*36 | 344*65*36 |
| PSD-HP300-A12 | 220-240V | 300W | 12V | 25A | CE | 218*65*36 | 280*65*36 | 344*65*36 |
| PSD-HP300-A24 | 220-240V | 300W | 24V | 12.5A | CE | 218*65*36 | 280*65*36 | 344*65*36 |
Junction Box LED Driver: All-in-One Integrated Solution
The Junction Box LED Driver is an innovative integrated power solution that combines the LED driver with a waterproof junction box, specially designed for outdoor and industrial lighting applications. This all-in-one unit eliminates the need for separate external wiring connections, providing a seamless, safe, and weather-resistant power supply for a wide range of LED lighting projects. Whether you are installing LED strip lights, LED panels, or high-bay luminaires, this junction box integrated driver delivers reliable performance with enhanced durability.
Key Design Advantages of Integrated Junction Box
Featuring a built-in junction box, this LED driver simplifies installation significantly. The enclosed design protects internal wiring from environmental elements such as rain, dust, and UV rays. Equipped with high-quality terminals and a robust housing, it ensures secure wire connections without the risk of loosening or short-circuiting. The junction box LED driver is engineered with a compact form factor, making it ideal for space-constrained installations where a separate junction box would be difficult to mount.
Superior Safety & Weather Resistance
Safety is the core feature of our junction box LED driver. It complies with ETL/UL safety standards, guaranteeing protection against electric shock, overheating, and overvoltage. With an impressive IP67 or higher waterproof rating, the driver can withstand direct exposure to water jets and temporary immersion, making it suitable for gardens, parking lots, and harsh industrial environments. The integrated junction box further enhances safety by completely isolating live parts from external contact.
High Efficiency & Wide Compatibility
Despite its compact integrated design, the driver maintains high energy efficiency, typically exceeding 90%, which reduces energy waste and lowers operational costs. It supports a wide AC input voltage range (100-277V AC), enabling global usage across different countries and grids. The driver provides stable DC output, ensuring flicker-free operation of your LED lights. Compatible with both constant voltage and constant current LED loads, the junction box LED driver is a versatile choice for both new installations and retrofitting existing lighting systems.
Easy Installation & Maintenance

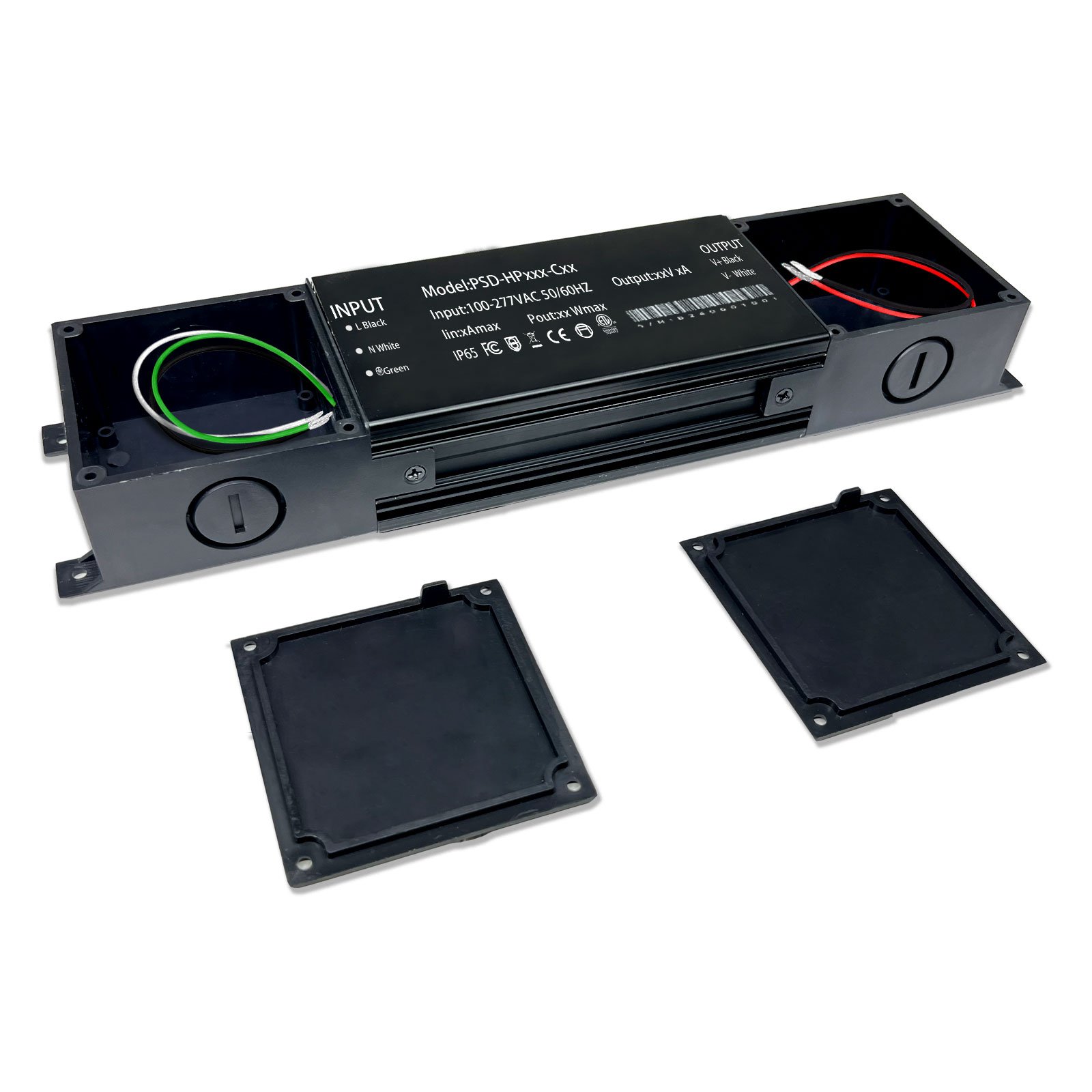

Installing the junction box LED driver is straightforward. Simply connect the AC power source and the LED load to the designated terminals inside the box, then secure the lid. The integrated structure reduces the number of components on-site, minimizing the chance of wiring errors. Additionally, the sealed design requires minimal maintenance, providing long-term trouble-free operation. With a long service life (typically 50,000+ hours), this driver ensures long-term value for your lighting investment.
Wide Application Range
Ideal for outdoor LED strip lighting, LED wall washers, street lights, garden lights, and industrial LED fixtures. It is also suitable for indoor areas where moisture resistance is required, such as bathrooms, kitchens, and swimming pool surrounds. The integrated junction box design makes it a preferred choice for professional electricians and lighting contractors seeking efficient and reliable LED power solutions.
