CE ROHS UKCA listed 12vdc 24vdc 3000ma 36w led power supply switching power driver
CE ROHS UKCA listed 12vdc 24vdc 3000ma 36w led power supply switching power driver - 图片 2
CE ROHS UKCA listed 12vdc 24vdc 3000ma 36w led power supply switching power driver - 图片 3
CE ROHS UKCA listed 12vdc 24vdc 3000ma 36w led power supply switching power driver - 图片 4

CE ROHS UKCA listed 12vdc 24vdc 3000ma 36w led power supply switching power driver

It is indoor using for 100-240vac 12vdc 3000ma 36w led driver, IP20 for LED lighting or any equipment, 3 years warranty.

• Input Voltage: 100-240vac
• Output Voltage: 12VDC
• Output Power: 36W
• Dimming Type: Non dimming
• Warranty: 3 years
• IP Rate: IP20
• Certification: CE ROHS UKCA listed
Datasheet

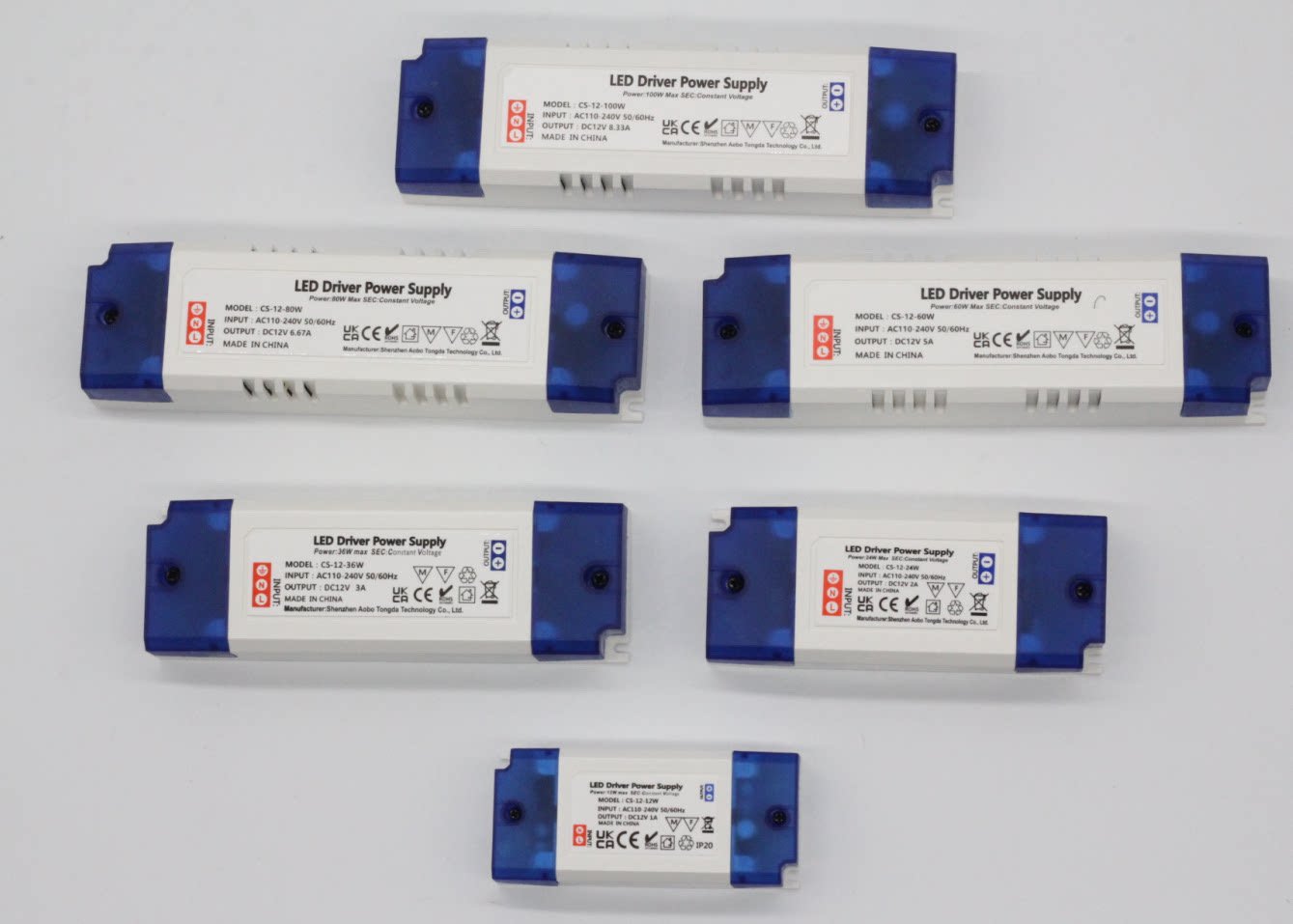

Model Input Output current Power-Max IP rate Material Product size
CS-12-12W 100-240V~50/60Hz 0.5A max 12VDC 1.0A 12W-max Load 80% IP20 ABS 89*39*23mm

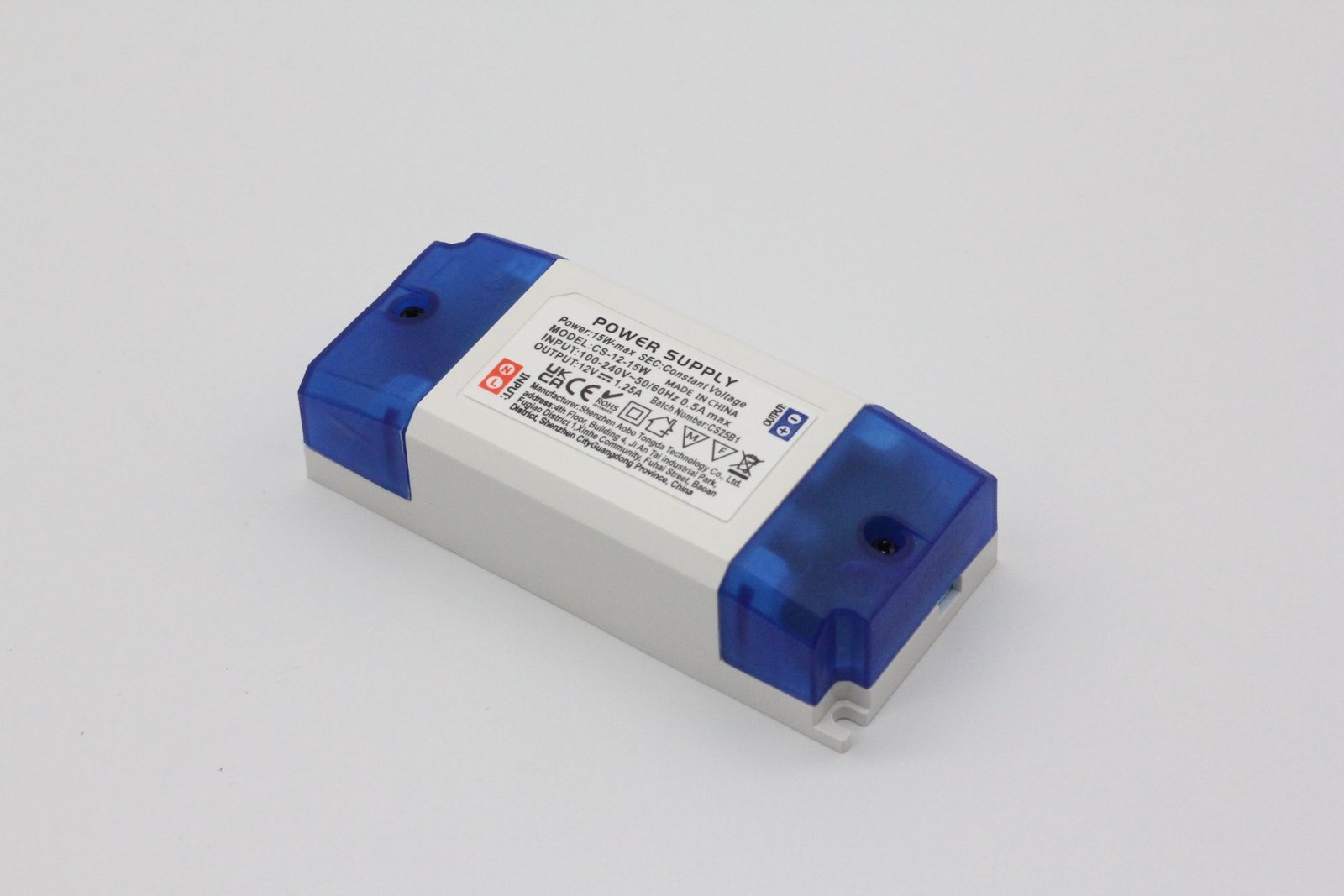

CS-12-15W 100-240V~50/60Hz 0.5A max 12VDC 1.25A 15W-max Load 80% IP20 ABS 89*39*23mm
CS-12-24W 100-240V~50/60Hz 0.5A max 12VDC 2.0A 24W-max Load 80% IP20 ABS 115*45*29mm

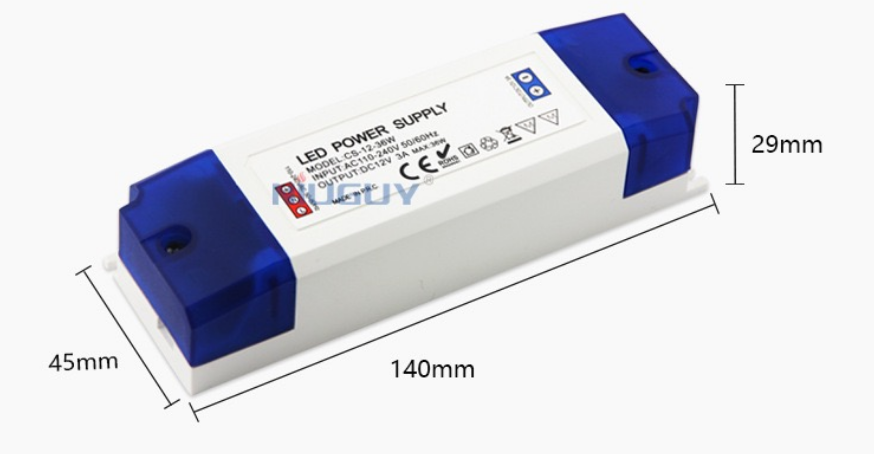

CS-12-36W 100-240V~50/60Hz 0.8A max 12VDC 3.0A 36W-max Load 80% IP20 ABS 140*45*29mm
CS-12-60W 100-240V~50/60Hz 1.0A max 12VDC 5.0A 60W-max Load 80% IP20 ABS 165*45*30mm
CS-12-80W 100-240V~50/60Hz 1.2A max 12VDC 6.67A 80W-max Load 80% IP20 ABS 165*45*30mm
CS-12-100W 100-240V~50/60Hz 1.4A max 12VDC 8.33A 100-max Load 80% IP20 ABS 165*45*30mm
CS-24-12W 100-240V~50/60Hz 0.5A max 24VDC 0.5A 12W-max Load 81% IP20 ABS 89*39*23mm
CS-24-15W 100-240V~50/60Hz 0.5A max 24VDC 0.62A 15W-max Load 81% IP20 ABS 89*39*23mm
CS-24-24W 100-240V~50/60Hz 0.5A max 24VDC 1.0A 24W-max Load 80% IP20 ABS 115*45*29mm
CS-24-36W 100-240V~50/60Hz 0.8A max 24VDC 1.5A 36W-max Load 81% IP20 ABS 140*45*29mm
CS-24-60W 100-240V~50/60Hz 1.0A max 24VDC 2.5A 60W-max Load 81% IP20 ABS 165*45*30mm
CS-24-80W 100-240V~50/60Hz 1.2A max 24VDC 3.33A 80W-max Load 81% IP20 ABS 165*45*30mm
CS-24-100W 100-240V~50/60Hz 1.4A max 24VDC 4.16A 100-max Load 81% IP20 ABS 165*45*30mm

It is indoor using for 100-240vac 12vdc 3000ma 36w led driver, IP20 for LED lighting or any equipment, 3 years warranty.
