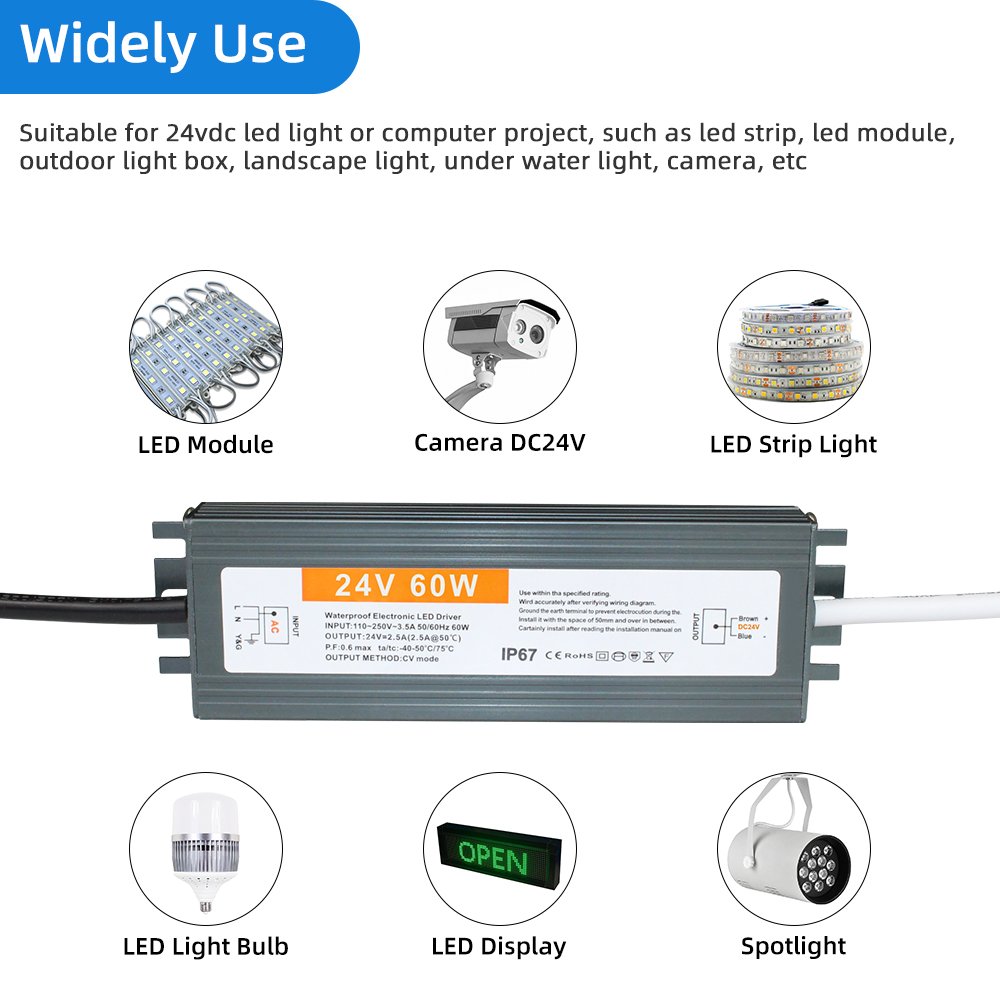

This 60W constant voltage LED driver operates 90V-130V or 170-250VAC input range. The LED driver provides 24V constant voltage which is suitable for both LED lighting or CCTV camera.
LED Driver 24vdc 60w waterproof led power supply constant voltage for led display lighting
This 60W constant voltage LED driver operates 90V-130V or 170-250VAC input range. The LED driver provides 24V constant voltage which is suitable for both LED lighting or CCTV camera.
• Input Voltage: 90V-130V or 170-250V
• Output Voltage: 24VDC
• Output Power: 60W
• Dimming Type: Non dimming
• Warranty: 3 years

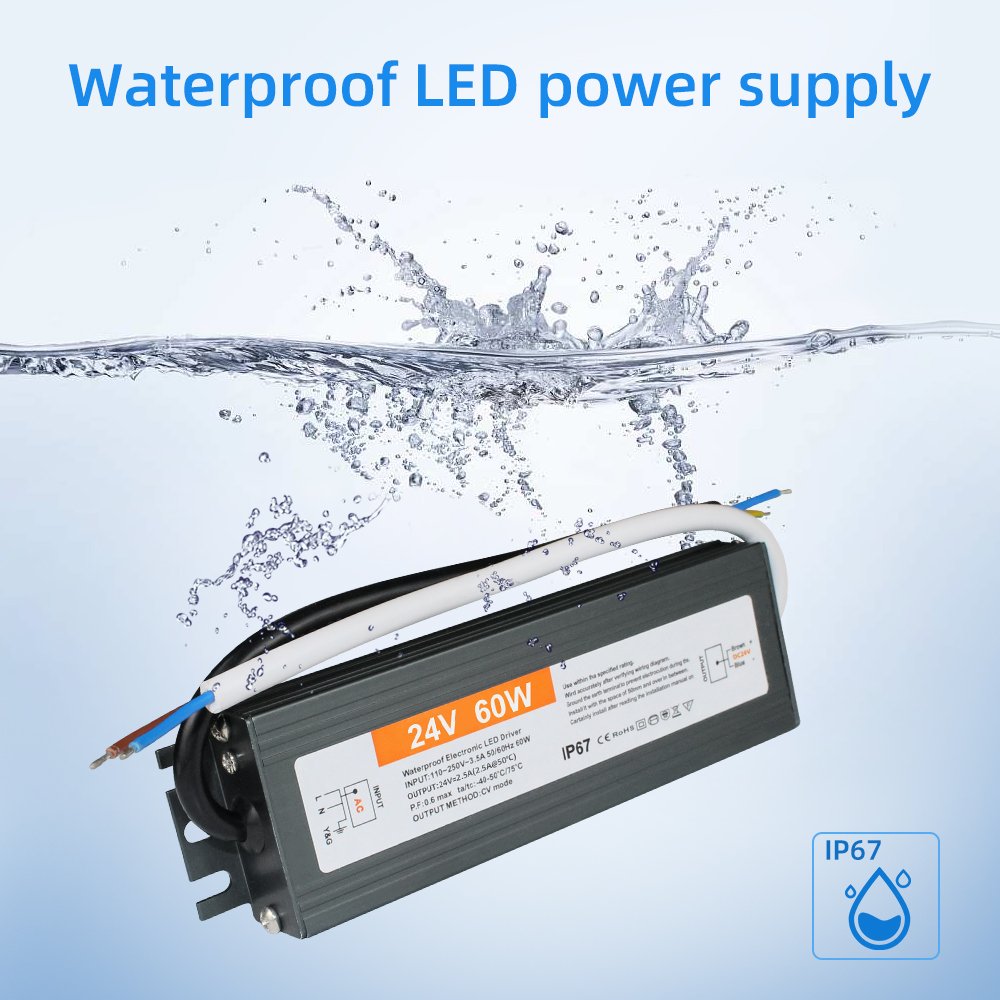

• IP Rate: IP67
• Certification: CE ROHS FCC listed

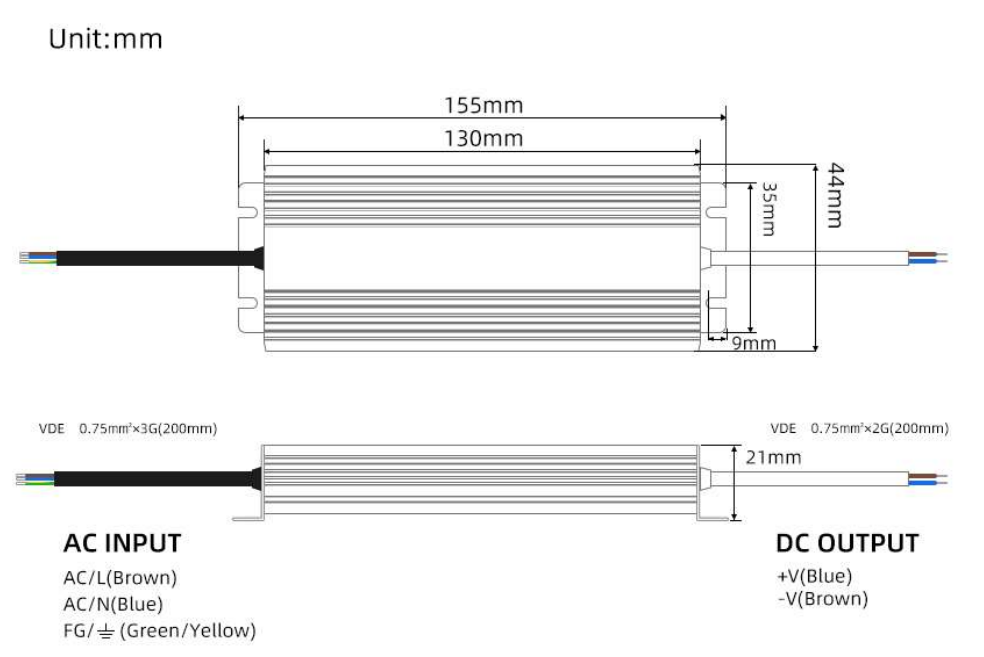

| WATTAGE | Product size(mm) | Input Voltage(Vac) | IP Rate | Model | Output voltage(Vdc) | Output current(A) | PCS/ctn |
|---|---|---|---|---|---|---|---|
| 60W | 130*44*21 | 90V-130V/170-250V | IP67 | 12V60W | 12V | 5A | 40 |
| 60W | 130*44*21 | 90V-130V/170-250V | IP67 | 24V60W | 24V | 2.5A | 40 |
| 80W | 160*44*21 | 90V-130V/170-250V | IP67 | 12V80W | 12V | 3.3A | 40 |
| 80W | 160*44*21 | 90V-130V/170-250V | IP67 | 24V80W | 24V | 6.7A | 40 |
| 100W | 170*65*31 | 90V-130V/170-250V | IP67 | 12V100W | 12V | 8.3A | 20 |
| 100W | 170*65*31 | 90V-130V/170-250V | IP67 | 24V100W | 24V | 4.2A | 20 |
| 150W | 190*65*31 | 90V-130V/170-250V | IP67 | 12V150W | 12V | 12.5A | 20 |
| 150W | 190*65*31 | 90V-130V/170-250V | IP67 | 24V150W | 24V | 6.3A | 20 |
| 200W | 210*65*31 | 90V-130V/170-250v | IP67 | 12V200W | 12V | 16.7A | 20 |
| 200W | 210*65*31 | 90V-130V/170-250V | IP67 | 24V200W | 24V | 8.3A | 20 |
| 250W | 210*65*31 | 90V-130V/170-250V | IP67 | 12V250W | 12V | 20.8A | 20 |
| 250W | 210*65*31 | 90V-130V/170-250V | IP67 | 24V250W | 24V | 10.4A | 20 |
