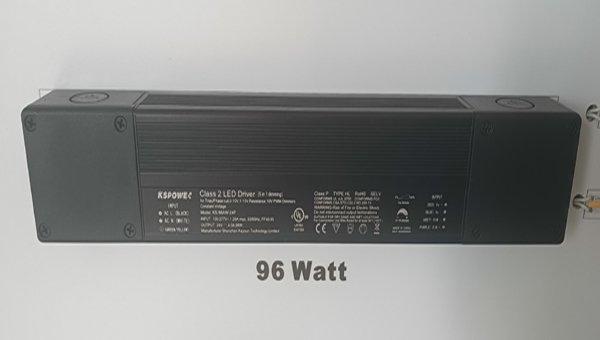

UL/cUL listed flicker free dimming 96w 24vdc 4a class 2 triac/0-10v dimmable led driver with junction box

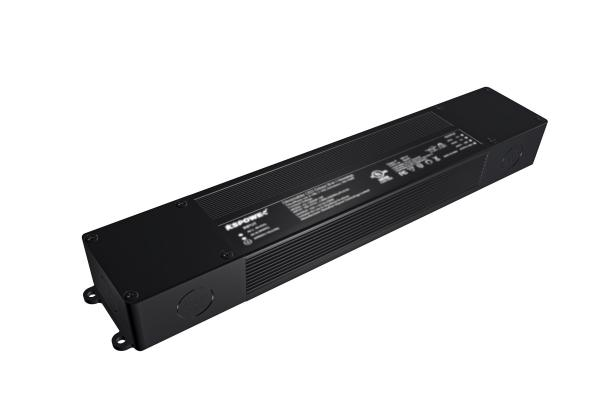

UL/cUL listed flicker free dimming 96w 24vdc 4a class 2 triac/0-10v dimmable led driver with junction box - 图片 2
UL/cUL listed flicker free dimming 96w 24vdc 4a class 2 triac/0-10v dimmable led driver with junction box - 图片 3

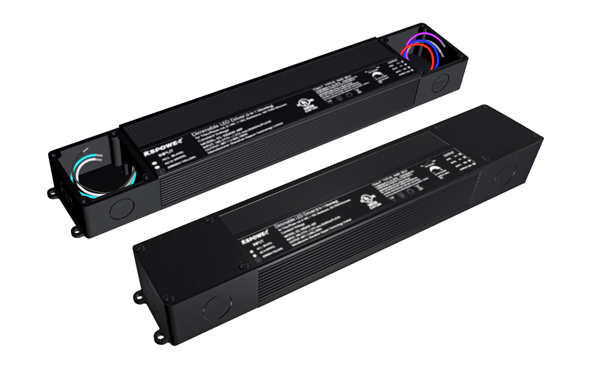

UL/cUL listed flicker free dimming 96w 24vdc 4a class 2 triac/0-10v dimmable led driver with junction box

The 5 in 1 dimmable led driver series 40w~320w is 100-277vac 12vdc/24vdc/36vdc/48vdc output with detachable junction box.

• Input Voltage: 100-277vac
• Output Voltage: 24VDC
• Output Power: 96W
• Dimming Type: Triac/phase cut, 0-10v,1-10v,10V PWM, resistance dimming
• Warranty: 5 years warranty
• IP Rate: IP67
• Certification: CE ROHS UL/cUL ENEC FCC ROHS listed
Datasheet
Model No.

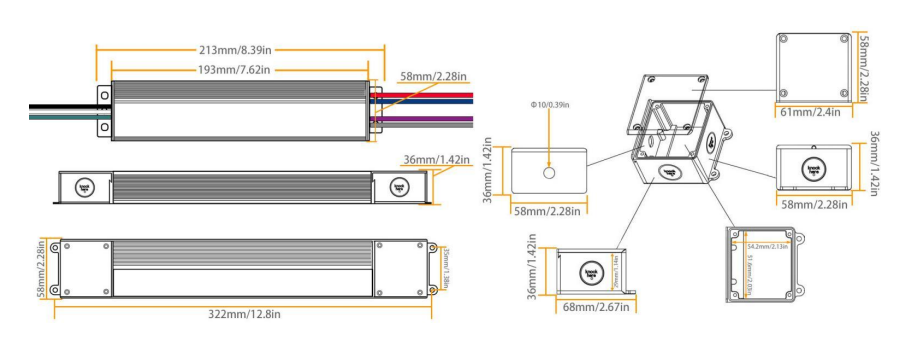

(XX = output voltage)		 Input voltage Output power Output voltage Output current PF&Efficiency Certificate Dimension
KS-40AW-XXP 100-277vac 40W 12V/24V/36V/48V 3.3A/1.67A/1.11A/0.83A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS Class2 (11.7×2.3×1.4)inch 297*58*36MM
KS-60AW-XXP 100-277vac 60W 12V/24V/36V/48V 5A/2.5A/1.67A/1.25A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS Class2 (11.7×2.3×1.4)inch 297*58*36MM
KS-80AW-XXP 100-277vac 80W 12V/24V/36V/48V 6.67A/3.33A/2.22A/1.67A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (24V,36V,48V) Class2 (11.7×2.3×1.4)inch 297*58*36MM
KS-96AW-24P 100-277vac 96W 24V 4A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS Class2 (12.8×2.3×1.4)inch 322*58*36MM
KS-100AW-XXP 100-277vac 100W 12V/24V/36V/48V 8.33A/4.16A/2.78A/2.08A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (24V,36V,48V) Class2 (12.8×2.3×1.4)inch 322*58*36MM
KS-120AW-XXP 100-277vac 120W 12V/24V/36V/48V 10A/5A/3.33A/2.5A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (12.8×2.3×1.4)inch 322*58*36MM
KS-150AW-XXP 100-277vac 150W 12V/24V/36V/48V 12.5A/6.25A/4.16A/3.13A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (12.8×2.3×1.4)inch 322*58*36MM
KS-180AW-12P 100-277vac 180W 12V 15A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (13.5×2.7×1.6)inch 343*68*41MM
KS-200AW-XXP 100-277vac 200W 12V/24V/36V/48V 16.66A/8.33A/5.55A/4.16A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (13.5×2.7×1.6)inch 343*68*41MM
KS-240AW-XXP 100-277vac 240W 12V/24V/36V/48V 20A/10A/6.66A/5A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (13.5×2.7×1.6)inch 343*68*41MM
KS-300AW-24P 100-277vac 300W 24V 12.5A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (14.4×2.7×1.6)inch 367*68*41MM
KS-320AW-XXP 100-277vac 320W 24V/36V/48V 13.3A/8.88A/6.66A ≥88%, PF>0.95 UL/cUL/CE/TUV-GS/RoHS (14.4×2.7×1.6)inch 367*68*41MM

The 5 in 1 dimmable led driver series 40w~320w is 100-277vac 12vdc/24vdc/36vdc/48vdc output with detachable junction box.
